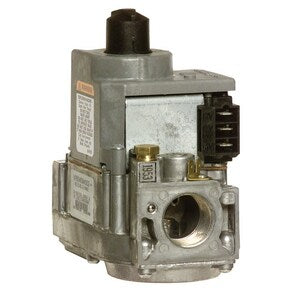

Resideo Multi-System Standard Opening 3/4 in Inlet x 3/4 in Outlet Intermittent Direct Ignition Gas Valve - 24V

Resideo Multi-System Standard Opening 3/4 in Inlet x 3/4 in Outlet Intermittent Direct Ignition Gas Valve - 24V
Part #HVR8345M4302

 |  Item #310855
 |  Manufacturer Part #VR8345M4302
Product Details


Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter.


Replaces many IP, HSI, or DSI gas control.


For use with natural or manufactured gas or LP gas.


Includes converter kit to adapt from natural to LP gas.


Compact size.


All adjustments and wiring connections accessible from top of control.


Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules.


Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper.


Internal inlet screen blocks contaminants in gas line from entering valve.







item(s) added to Cart Checkout Now



Checkout Now
Specifications



Application: Valves



Brand Model Compatibility: VR8245M, VR8345M



Fitting Size 1: 3/4 in



Fitting Size 2: 3/4 in



Fitting Sizes: 3/4 in



Fuel Type: Natural Gas, Propane



Height: 5-19/50 in



Ignition System: Direct Spark Ignition



Inlet Outlet: 3/4 in inlet/ 3/4 in outlet



Length: 2-69/100 in



Maximum Temperature: 175



Minimum Temperature: -40



Origin: Global



Phase: Single Phase



Power Source: Gas



Recommended Valve Application: Gas



Stages: Two



Temperature Range: -40 to 175 Deg F



Type: HVR8345M4302



UL Listed: Yes



VAC at 60 Hz: 24



VA Rating: 24



Valve Body Style: Straight



Valve Size: 3/4 in



Valve Type: Gas Valve



Volts: 24V



Width: 4-3/50 in
