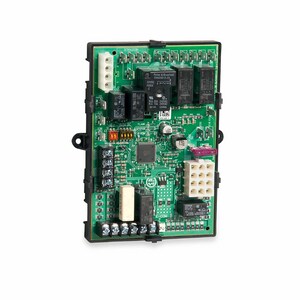

Resideo Multisystem Hot Surface Ignition Integrated Furnace Control

Resideo Multisystem Hot Surface Ignition Integrated Furnace Control
Part #HS9200U1000

 |  Item #3420474
 |  Manufacturer Part #S9200U1000
Product Details


Replaces over 195 existing furnace controls


Controls circulating fan motor based on appliance requirements with a conventional low voltage thermostat


Cross reference and wire harnesses included


Main burner ignition using a 120V hot surface igniter


Flame rectification circuit to monitor flame presence


Monitoring of system pressure switch, high temperature limit, and rollout functions


Appliance operation and safety requirements controlled via microprocessor


LED system status, performance, and diagnostic indication


Twinning capability







item(s) added to Cart Checkout Now



Checkout Now
Specifications



AMP: 5



Application: Ignition Systems



Brand Model Compatibility: Nordyne 624557 Furnace



Control Board Type: Ignition & Furnace



Height: 4-13/100 in



Length: 6-13/100 in



Origin: Global



Volts: 120V



Width: 1-1/2 in
