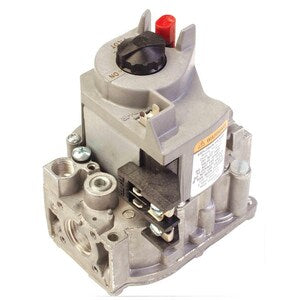

Resideo Single Stage 1/2 in Inlet x 1/2 in Outlet Standing Pilot Gas Valve - 24V

Resideo Single Stage 1/2 in Inlet x 1/2 in Outlet Standing Pilot Gas Valve - 24V
Part #HVR8200A2132

 |  Item #106325
 |  Manufacturer Part #VR8200A2132
Product Details


Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.


Compact size.


Provides two automatic valves.


Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends.


Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.


Meets codes requiring dual safety shut-off.


Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.


All adjustments, wiring connections and pilot outlet are accessible from top of control.


Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.







item(s) added to Cart Checkout Now



Checkout Now
Specifications



Application: Valves



CSA Certified: Yes



Fitting Size 1: 1/2 in



Fitting Size 2: 1/2 in



Fitting Sizes: 1/2 in



Fuel Type: Natural Gas, Propane



Height: 5-19/100 in



Ignition System: Pilot



Inlet Outlet: 1/2 in inlet/ 1/2 in outlet



Length: 3-1/4 in



Maximum Temperature: 175



Minimum Temperature: 0



Origin: Global



Phase: Single Phase



Power Source: Gas



Recommended Valve Application: Gas



Temperature Range: 0 to 175 Deg F (-18 to 79 Deg C)



Type: HVR8200A2132



UL Listed: Yes



VAC at 60 Hz: 24



VA Rating: 24



Valve Body Style: Straight



Volts: 24V



Width: 4-13/100 in
