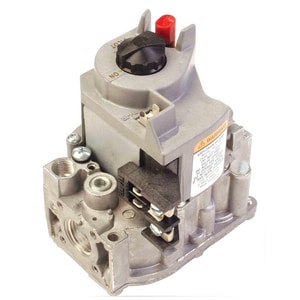

Resideo Single Stage Standard Opening 1/2 in Inlet x 1/2 in Outlet Standing Pilot Gas Valve - 24V

Resideo Single Stage Standard Opening 1/2 in Inlet x 1/2 in Outlet Standing Pilot Gas Valve - 24V
Part #HVR8200A2744

 |  Item #1074787
 |  Manufacturer Part #VR8200A2744
Product Details


Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.


Compact size.


Provides two automatic valves.


Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends.


Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.


Meets codes requiring dual safety shut-off.


Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.


All adjustments, wiring connections and pilot outlet are accessible from top of control.


Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.







item(s) added to Cart Checkout Now



Checkout Now
Specifications



Application: Valves



BTU: 130000



CSA Certified: CSA International: 112395



Color: Black



Color Finish: Black, Grey



Color Finish Category: Blacks



Fitting Size 1: 1/2 in



Fitting Size 2: 1/2 in



Fitting Sizes: 1/2 in



Fuel Type: Natural Gas



Height: 5-19/50 in



High Pressure: 0.5



Inlet Outlet: 1/2 in inlet/ 1/2 in outlet



Length: 2-11/16 in



Maximum Pressure: 0.5 psi



Maximum Temperature: 175



Minimum Temperature: 0



Origin: Global



Power Source: Electric, Gas



Recommended Valve Application: Gas



Stages: Single



Temperature Range: 0 to 175 Deg F (-18 to 79 Deg C)



Type: HVR8200A2744



UL Listed: Yes



VAC at 60 Hz: 24



VA Rating: 24



Valve Body Style: Straight



Valve Type: Gas Valve



Volts: 24V



Width: 4-3/50 in
