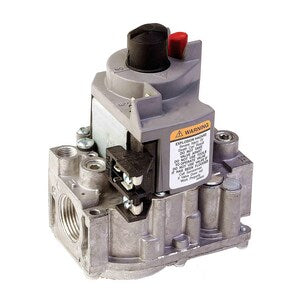

Resideo Standard Opening 3/4 in Inlet x 3/4 in Outlet Standing Pilot Gas Valve - 24V

Resideo Standard Opening 3/4 in Inlet x 3/4 in Outlet Standing Pilot Gas Valve - 24V
Part #HVR8300A4508

 |  Item #511608
 |  Manufacturer Part #VR8300A4508
Product Details


Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment


Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends


Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted


Frequency: 60 Hz


Parts Warranty: 1 Year







item(s) added to Cart Checkout Now



Checkout Now
Specifications



Application: Valves



Fitting Size 1: 3/4 in



Fitting Size 2: 3/4 in



Fitting Sizes: 3/4 in



Fuel Type: Propane



Height: 5-19/50 in



Ignition System: Standing Pilot



Inlet Outlet: 3/4 in inlet/ 3/4 in outlet



Length: 2-69/100 in



Maximum Temperature: 175



Minimum Temperature: 0



Origin: Global



Phase: Single Phase



Power Source: Gas



Recommended Valve Application: Gas



Stages: Single



Temperature Range: 0 to 175 Deg F (-18 to 79 Deg C)



Type: HVR8300A4508



UL Listed: Yes



VAC at 60 Hz: 24



VA Rating: 24



Valve Body Style: Straight



Valve Size: 3/4 in



Valve Type: Gas Valve



Volts: 24V



Width: 4-3/50 in
