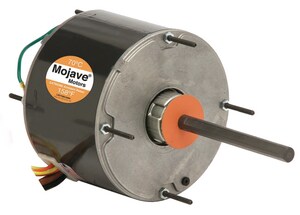

US Motors Mojave® 1/3 hp 1075 RPM 208/230V Single Phase Condenser Motor

US Motors Mojave® 1/3 hp 1075 RPM 208/230V Single Phase Condenser Motor
Part #USM1861H

 |  Item #3441445
 |  Manufacturer Part #1861H
Product Details


Condenser fan motor


Reversible rotation


Ball bearings


Class F insulation


Stud/band mount


Automatic reset thermal overload protector


Two speed settings







item(s) added to Cart Checkout Now



Checkout Now
Specifications



AMP: 2.1



Blower Type: Direct Drive



Collection: Mojave®



Diameter: 5-3/5 in



Frame Size: 48



Horsepower: 1/3 hp



Length: 11-11/100 in



Material: Steel



Maximum Temperature: 70



Motor Enclosure: Totally Enclosed Air Over (TEAO)



Phase: Single Phase



Power Source: Electric



Product Type: Condenser Motor



RPM: 1075



RPM Range: 900-1150



Temperature Range: -29 to 70 Deg C



UL Listed: Yes



Volts: 208/230V
