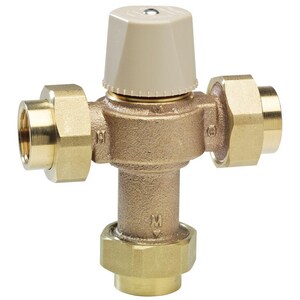

Watts Series LFMMV 1/2 in. Thermostatic Mixing Valve

Watts Series LFMMV 1/2 in. Thermostatic Mixing Valve
Part #WLFMMVM1UTD

 |  Item #3919677
 |  Manufacturer Part #0559116
Lead free brass construction


Thermal actuation technology for precise temperature control


Locking mechanism secures temperature setting


ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed
Specifications



ADA Compliant: No



ANSI Specifications: ANSI 61 Annex G



ASSE Standards: ASSE 1017, ASSE 1069, ASSE 1070



Application: Commercial, Institutional, Residential



BAA Compliant: Yes



CSA Certified: Yes



Capacity: 13 GPM at 45PSI



Collection: Series LFMMV



Color Finish: Rough Bronze



Color Finish Category: Bronze Tones



Depth: 5-41/100 in



End Connection 1: Union Threaded



End Connection 2: Union Threaded



End Connection 3: Female Threaded



End Connections: Union Threaded x Female Threaded



Flow Rate: 20 gpm



Height: 5-7/16 in



High Pressure: 150



IAPMO Listed: Yes



Lead Law Compliant: Yes



Low Pressure: 30



Material: Rubber



Material Type: Buna-N, EPDM



Maximum Temperature: 200



NSF Certified: Yes



NSF Specifications: NSF 61 Annex G



Temperature Range: 80 to 120 Deg F (27 to 49 Deg C)



Type: WLFMMVM1UTD



UL Listed: No



Valve Body Material: Cast Copper Silicon Alloy



Valve Disc Material: Stainless Steel



Valve Size: 1/2 in



Valve Type: Thermostatic Mixing Valve



Weight: 1.8



Width: 4-7/8 in
